¶ i7 Series Screw Kit
We have organized the commonly used or easily lost screws for the i7 series into a dedicated screw kit, making it convenient for users to select and use the screws during maintenance.
This guide introduces the usage location of each screw type included in the kit.
¶ Screw List
|
Screw |
Amount |
|
M3×6(A)
|
5
|
|
3×15×M2.5
|
3
|
|
M2×6
|
10
|
|
2.5×12×M2
|
3
|
|
ST3×6
|
10
|
|
M3×6(B)
|
5
|
|
M2×11
|
4
|
¶ Screw Usage
¶ M3×6(A)

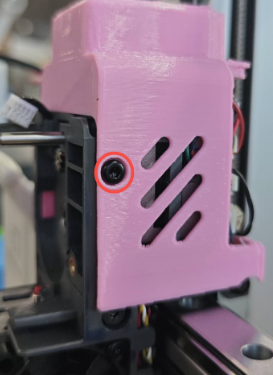

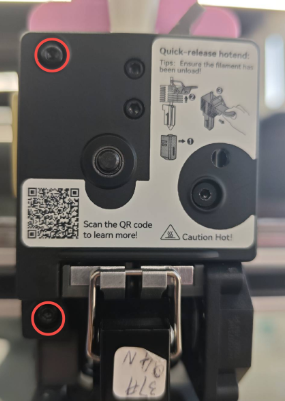

Secures the Front Cover of the Extruder

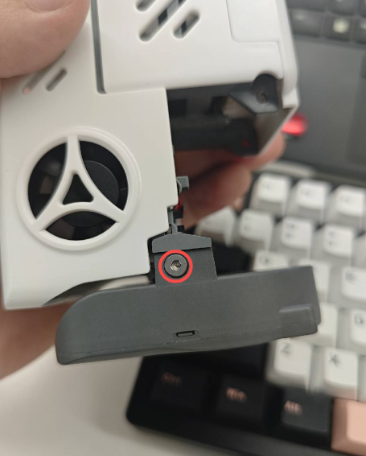

Secures the Purge Wiper Assembly
¶ 3×15×M2.5

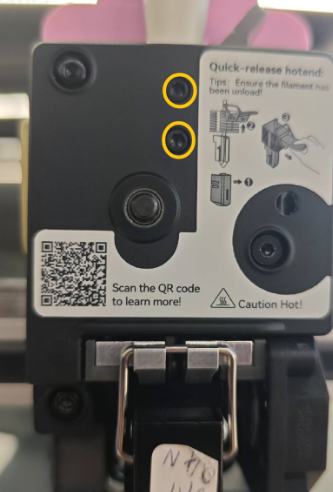

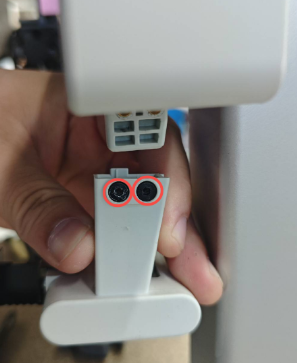

Secures the Toolhead Wrench
¶ M2×6
Secures the Toolhead Manifold Assembly

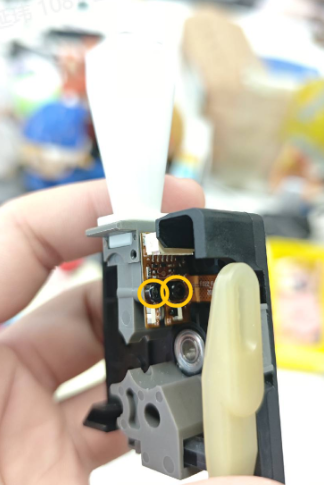

Secures the Filament Sensor Board
¶ 2.5×12×M2

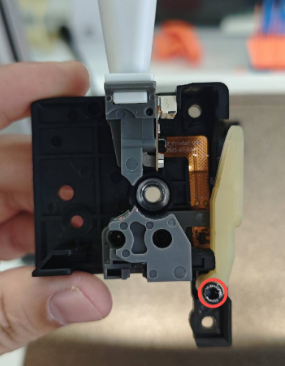

Secures the Filament Cutter.
¶ ST3×6
Secures the Rear Cover of the Extruder.

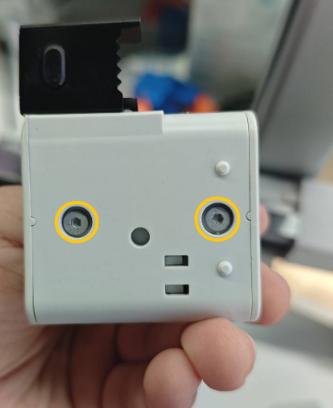

Secures the Base Cover of the Purge Wiper Assembly.

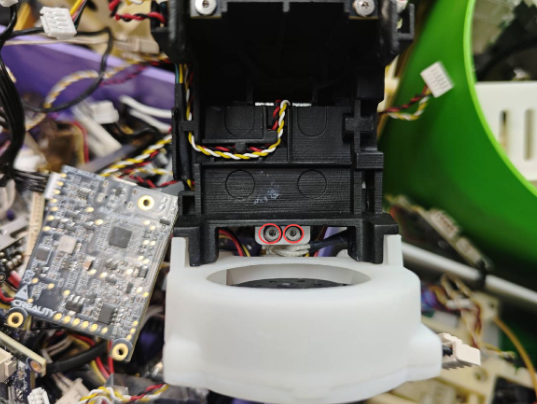

Secures the Part Cooling Fan
¶ M3×6(B)

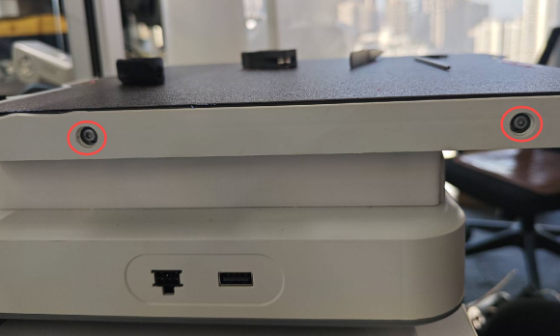

Secures the Heated Bed.
¶ M2×11

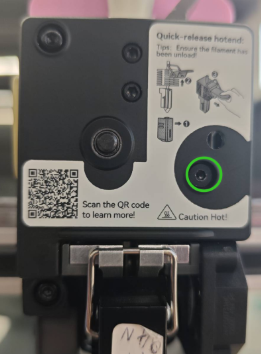

Secures the Hotend Heating Assembly
