¶ Hardware

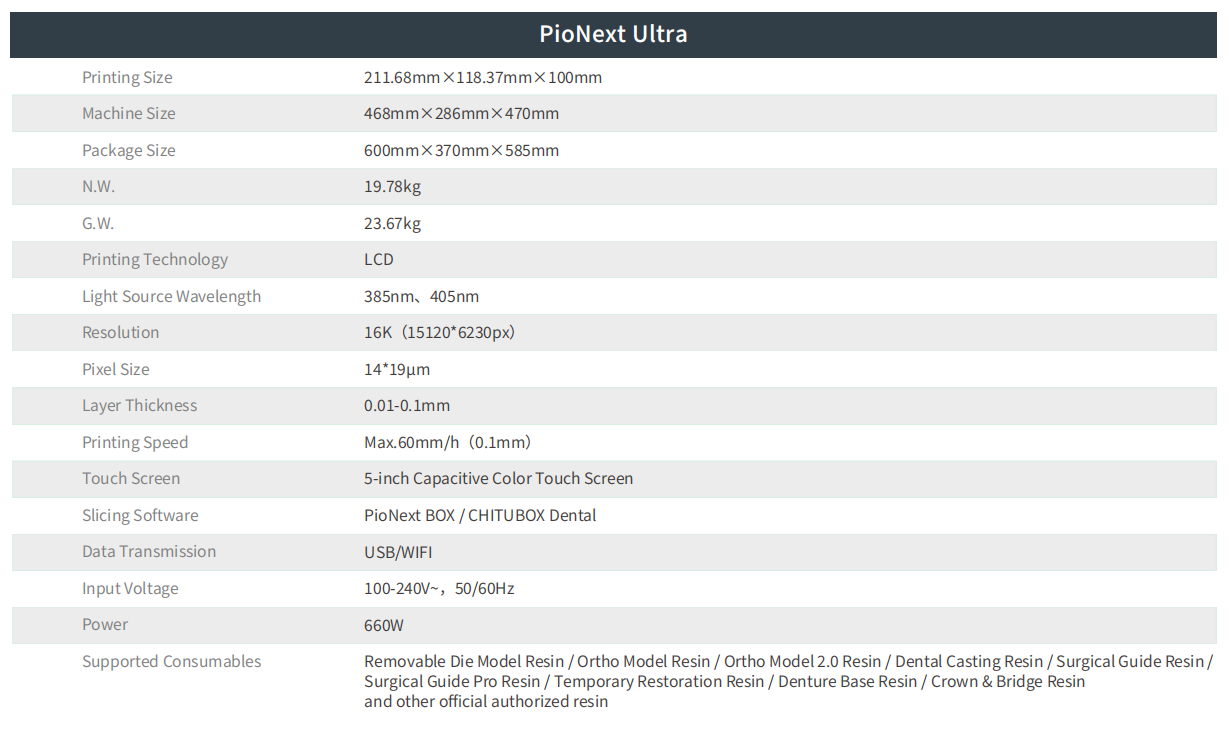

Q： Can you provide the main technical specifications for the PioNext Ultra?
A： Hello, below are the detailed technical specifications for the PioNext Ultra.
Q： What are the dimensions of the PioNext Ultra release film?
A： The dedicated release film dimensions are 274.5mm × 195.5mm × 0.15mm.
Q： Which resins are supported by the PioNext Ultra?
A：
- It supports resins with wavelengths of 385nm and 405nm, including ceramic crown resin, temporary resin, guide resin, model resin, and all other PioNext brand resins.
- Please select the correct light source type according to the compatibility of the resin being used：
- If printing with the 385nm band, select "High Precision Mode" in the dual-band settings.
- If printing with the 405nm band, select "Fast Mode" in the dual-band settings.
Q： What is the maximum amount of resin that can be added to the resin vat?
A： It is recommended not to exceed 500ml (i.e., not exceeding the "Max" line).
Q： What is the lifespan of the LCD screen? Is it replaceable?
A： LCD screen lifespan: approx. 2,000 hours. Replace the LCD screen if it exceeds its lifespan or is damaged.
Q： How do I clean the build platform?
A： It is recommended to spray and clean with 95% industrial alcohol, use a metal scraper to remove cured residue, then wipe dry with a lint-free cloth and blow dry with an air gun.
Q： How should I handle hardware issues with the device (e.g., LCD not displaying)?
A： Please contact customer service and provide the device's SN code, firmware version, and printing parameters. The after-sales team will arrange for inspection, repair, or part replacement.
