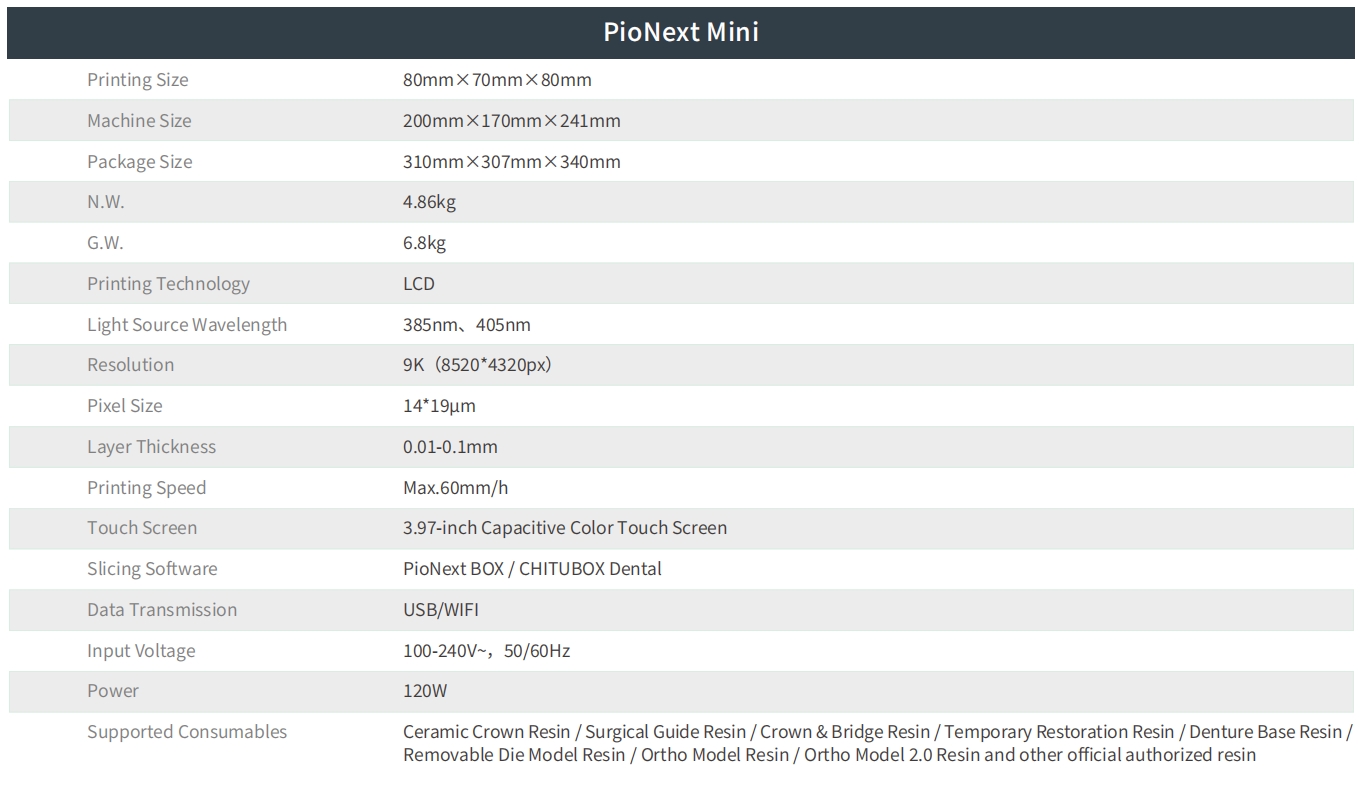

Q: Can you provide the main technical specifications for the PioNext Mini?
A: Hello, below are the detailed technical specifications for the PioNext Mini.
Q: What are the dimensions of the PioNext Mini release film?
A: The dedicated release film dimensions are 110mm×100mm×0.3mm.
Q: Which resins are supported by the PioNext Mini?
A:
- It supports resins with wavelengths of 385nm and 405nm, including ceramic crown resin, temporary resin, guide resin, model resin, and all other PioNext brand resins.
- Please select the correct light source type according to the compatibility of the resin being used：

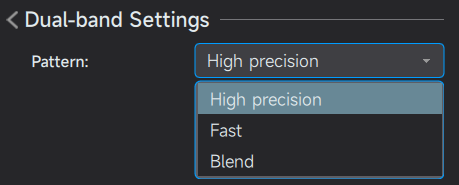

- If printing with the 385nm band, select "High Precision Mode" in the dual-band settings.
- If printing with the 405nm band, select "Fast Mode" in the dual-band settings.
Q: What is the maximum amount of resin that can be added to the resin vat?
A: The total capacity of the resin vat is 300ml. It is recommended not to exceed 150ml (i.e., not exceeding the "Max" line).
Q: What is the lifespan of the LCD screen? Is it replaceable?
A: LCD screen lifespan: approx. 2,000 hours. Replace the LCD screen if it exceeds its lifespan or is damaged.
Q: How do I clean the build platform?
A: It is recommended to spray and clean with 95% industrial alcohol, use a metal scraper to remove cured residue, then wipe dry with a lint-free cloth and blow dry with an air gun.
Q: How should I handle hardware issues with the device (e.g., LCD not displaying)?
A: Please contact customer service and provide the device's SN code, firmware version, and printing parameters. The after-sales team will arrange for inspection, repair, or part replacement.
Q: What is the light intensity of the PioNext Mini?
A: The PioNext Mini adopts dual-band LED light source of 385nm/405nm, with light intensity ranging from 6500 to 7000 mW/cm² and light uniformity reaching 90% or above.
Q: What are the printing accuracy and layer thickness of the PioNext Mini respectively?
A:
- Printing accuracy (XY resolution): 9K (8520×4320 pixels)
- Layer thickness: adjustable from 0.01 mm to 0.1 mm.
Q: What is the light intensity of the PioNext Mini and its continuous working performance?
A: Specifications of the matching curing box are as follows:
- Curing light intensity: 150000～200000 mW/cm²
- Continuous working performance: maximum runtime of 99 minutes and 59 seconds.
- Recommended curing time: 2～10 minutes. The curing box delivers high light intensity; please adjust curing time according to resin type, model size and thickness.
Q: What are the differences between 385nm and 405nm light sources, along with their respective advantages and disadvantages?
A:
- 385nm: Delivers higher energy output for in-depth resin curing, with slightly weaker light penetration. Ideal for high-precision dental models and transparent resin printing.
- 405nm: Features superior light penetration to enable faster printing speed, with a minor trade-off in edge sharpness. Suitable for rapid prototyping and standard model resin printing.
Advantage of Mini dual-wavelength design: You may freely switch between 385nm and 405nm modes via slicing software without hardware replacement.
