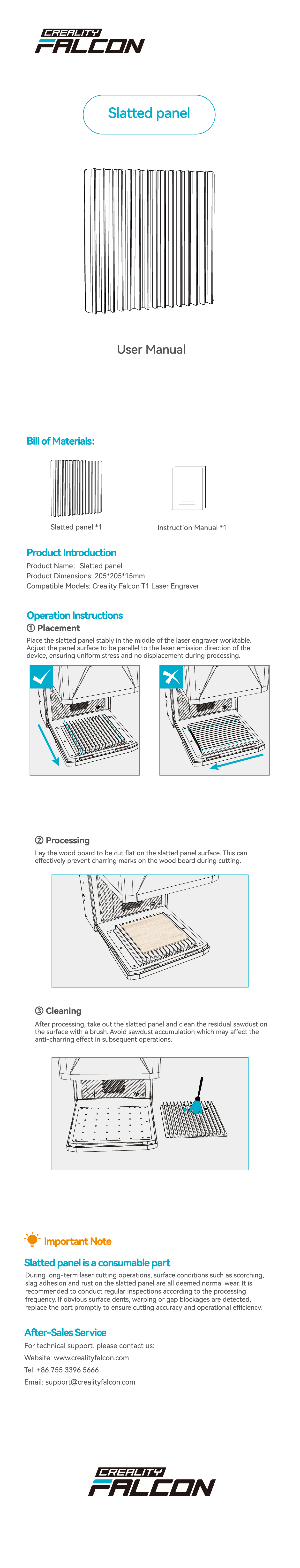

¶ Slatted panel Quick Start Guide
¶ Notes for Cutting Operations
- For all types of material cutting, a slat bed must be laid in the processing area. Never cut directly on the equipment's base plate, as the laser will burn and damage the base plate, causing irreversible wear.
- If a slat bed is unavailable, place small spacer materials under the work piece to leave a certain ventilation gap at the bottom of the material, which can effectively reduce charring on the cutting edges.
Product Introduction
Application scenario: When cutting consumables, the Slatted panel needs to be laid flat on the work base plate, which can effectively prevent burnt marks from forming on the back side when cutting wood boards.
Product Name:Slatted panel
Product Dimensions: 205*205*15 mm
Applicable Model: Creality Falcon T1 Engraver
Instructions for use

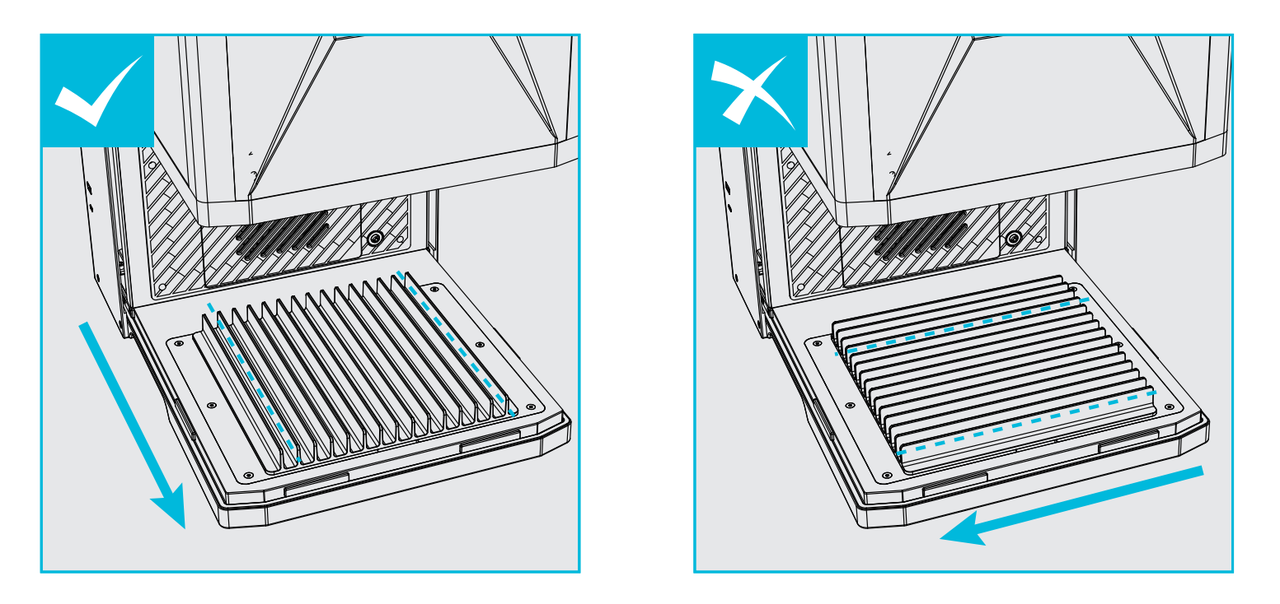

Place the Slatted panel steadily in the middle of the worktable of the laser engraving machine, adjust the plate surface to be parallel to the laser emission direction of the equipment, so as to ensure uniform force without deviation during processing.

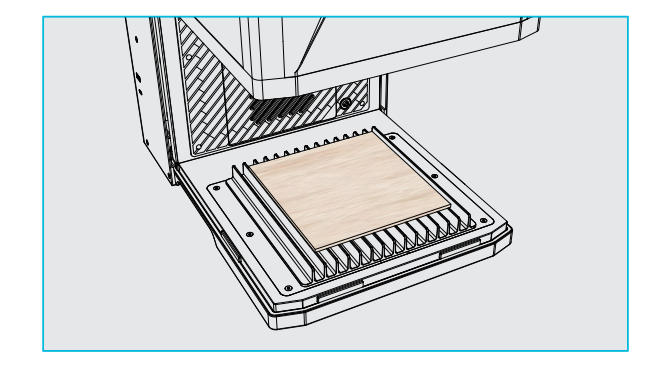

② Processing
Lay the wood board to be cut flat on the surface of the slatted panel

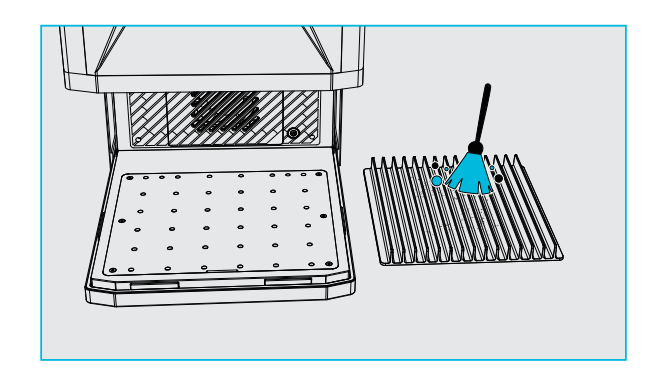

③ Cleaning
After the processing is completed, take out the Slatted panel, and use a brush to clean the residual wood chips on the surface to avoid the accumulation of debris from affecting the subsequent anti-scorching effect.
The Slatted panel is a wearable component. During long-term laser cutting operations, surface conditions such as burning, slag adhesion, and rust are all normal wear and tear. It is recommended to conduct regular inspections based on the processing frequency; if obvious dents, warpage, or clogged gaps are found on the surface, replace it in a timely manner to ensure cutting accuracy and operational efficiency.
