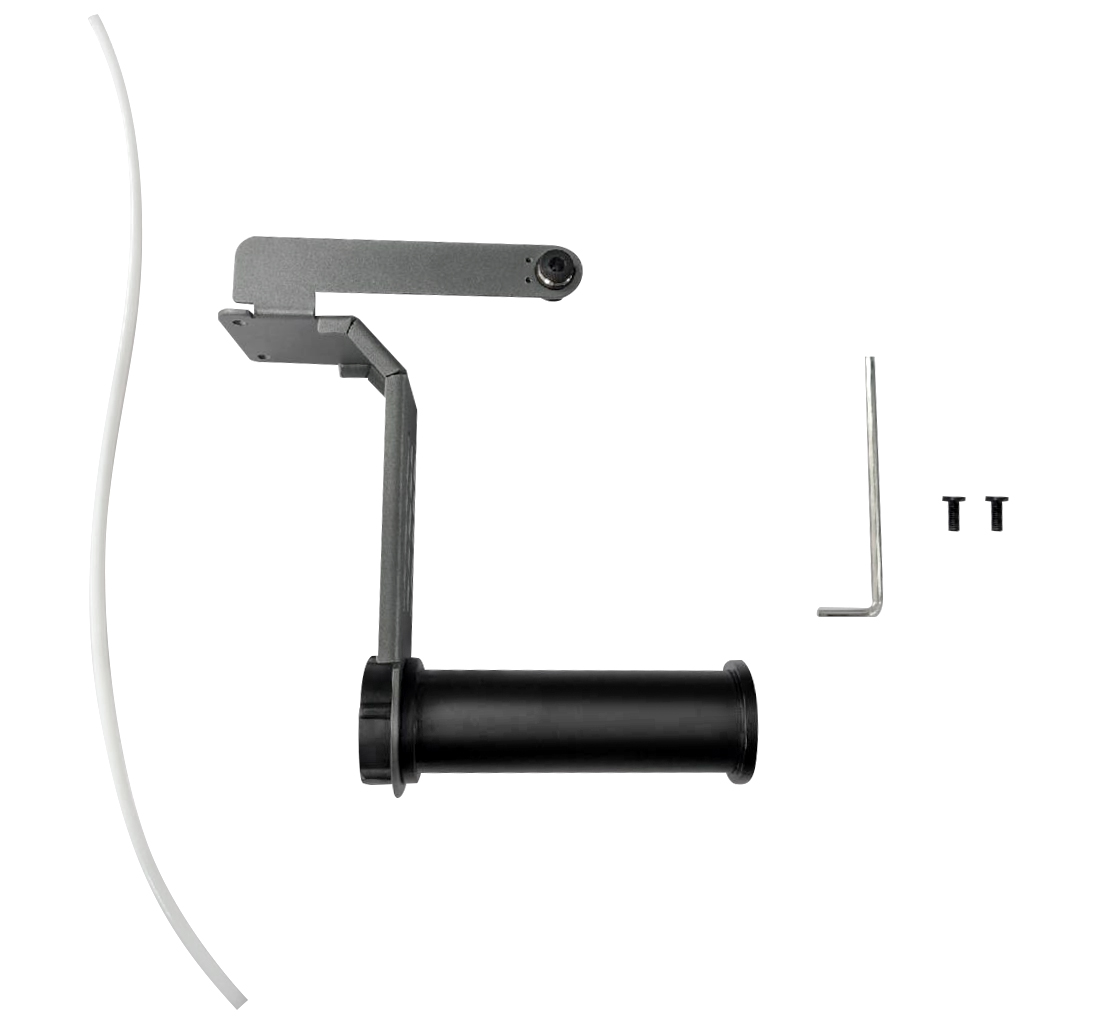

¶ Tool：
Spool Holder
Wrench 4cm
M4×10 Flat Head Screw (SKU: 3206010645)
PTFE tube (Teflon Tube)
¶ Installation Steps：

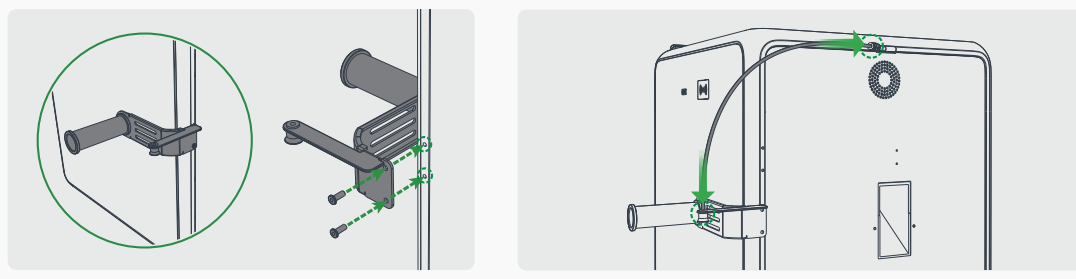

As shown in the figure, align the spool holder with the holes on the back of the machine and secure it with two spool holder screws;
Connect the PTFE tube: As shown in the figure, connect both ends of the PTFE tube to the tube connectors on the spool holder and the machine.
- Locate the holes in the backplate.
-
Place the side of the spool holder with filament pipe on it.
-
Connect the printer and the spool holder with teflon tube, pay attention to the direction of installation.
