¶ Tools
Hexagonal wrench
New material break detection module
¶ Replacement Steps
¶ Safety Tips:
Before replacement, please retract the filament and power off the machine. Do not replace components while the device is powered on.
¶ Disassembly

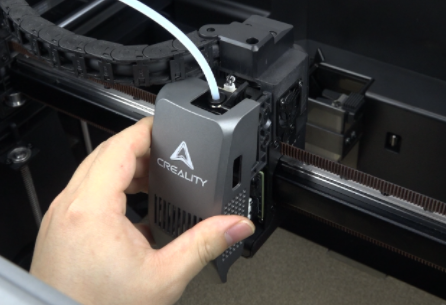

Remove the magnetic cover.

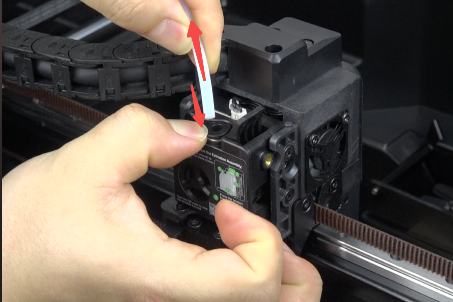

Press the tube connector and pull out the PTFE tube.

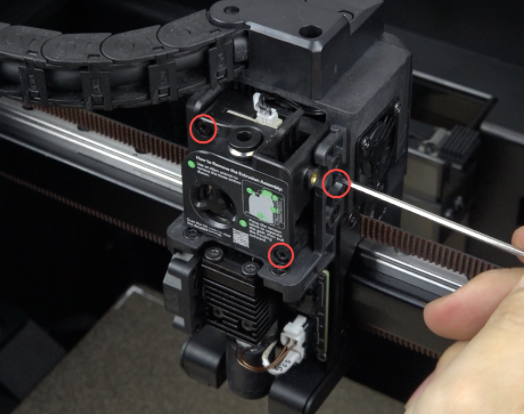

Use hexagonal wrench to remove 3 screws fixing the extruder front cover.

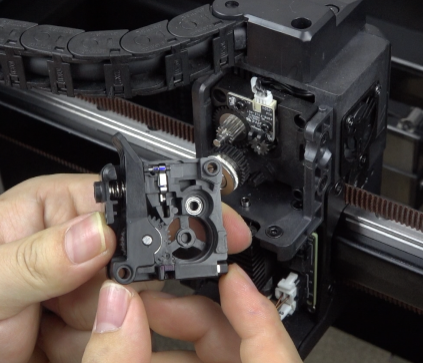

Squeeze the extruder clamp and pull out the extruder front cover.
 |
 |

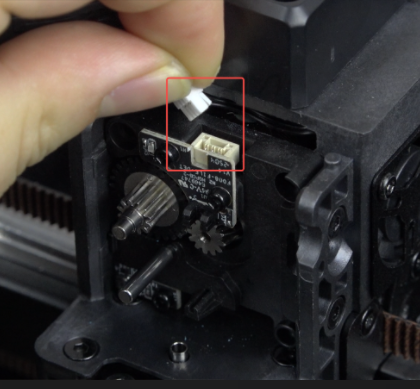

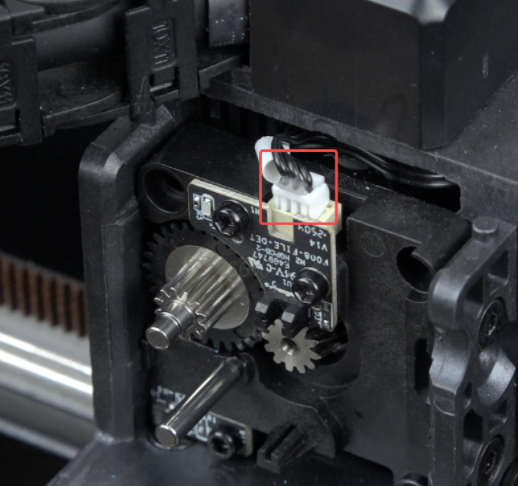

Unplug the material break detection wire.

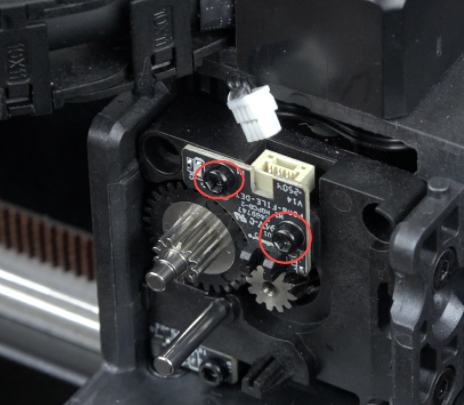

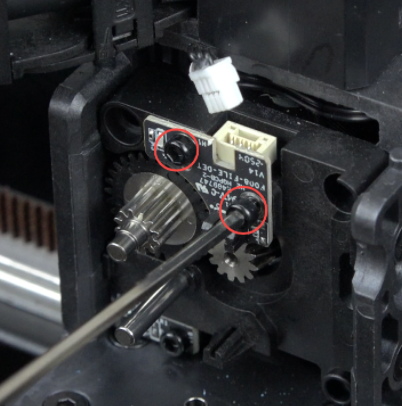

Use hexagonal wrench to remove 2 fixing screws.

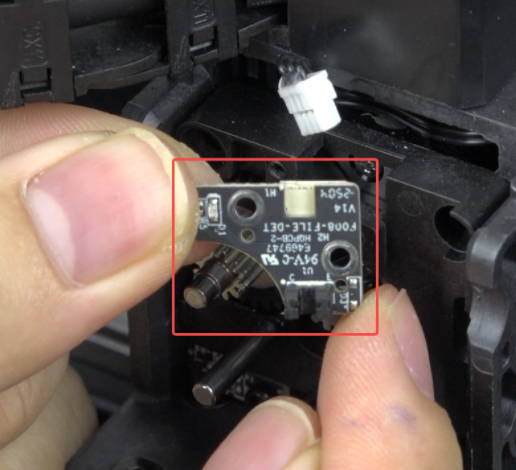

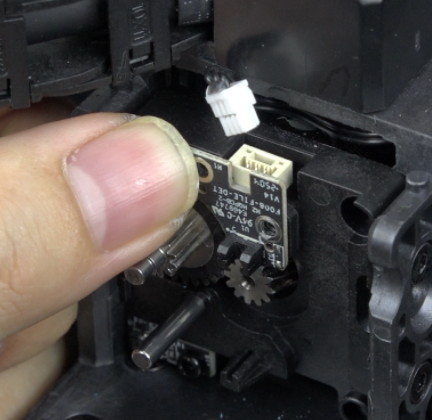

Remove the damaged material break detection module.
¶ Installation
Place the new material break detection module.
Use hexagonal wrench to tighten 2 fixing screws.
Plug in the material break detection wire.

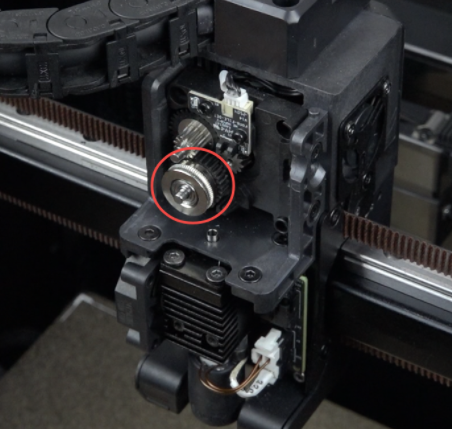

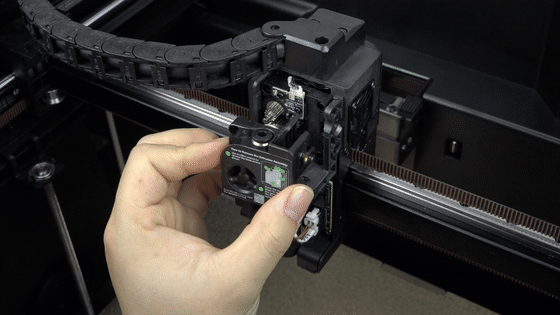

Place the extruder gear, squeeze the extruder clamp, install the extruder front cover.
Use hexagonal wrench to tighten 3 screws fixing the extruder front cover.

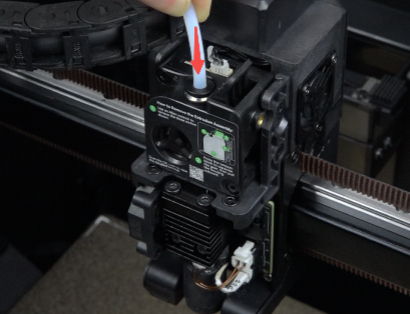

Insert the PTFE tube.

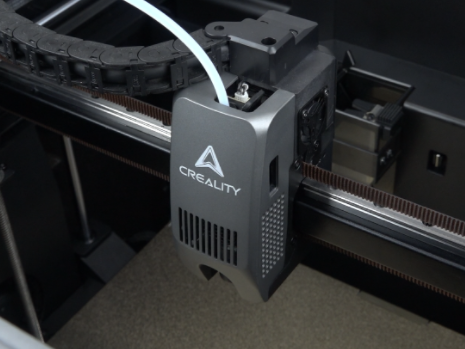

Install the magnetic cover.
¶ Device Self-check

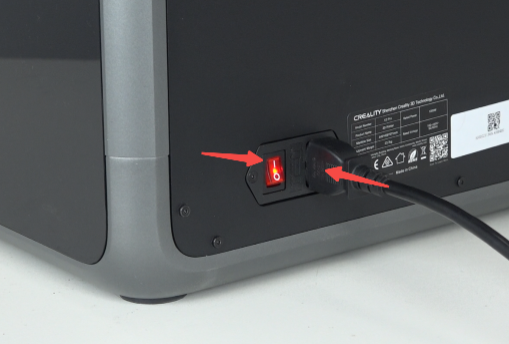

Plug in the power cord and power on.
Click "Prepare" - "Calibrate" - "Select All" - "Start detecting", wait for the device calibration to complete
