¶ Human Scanning

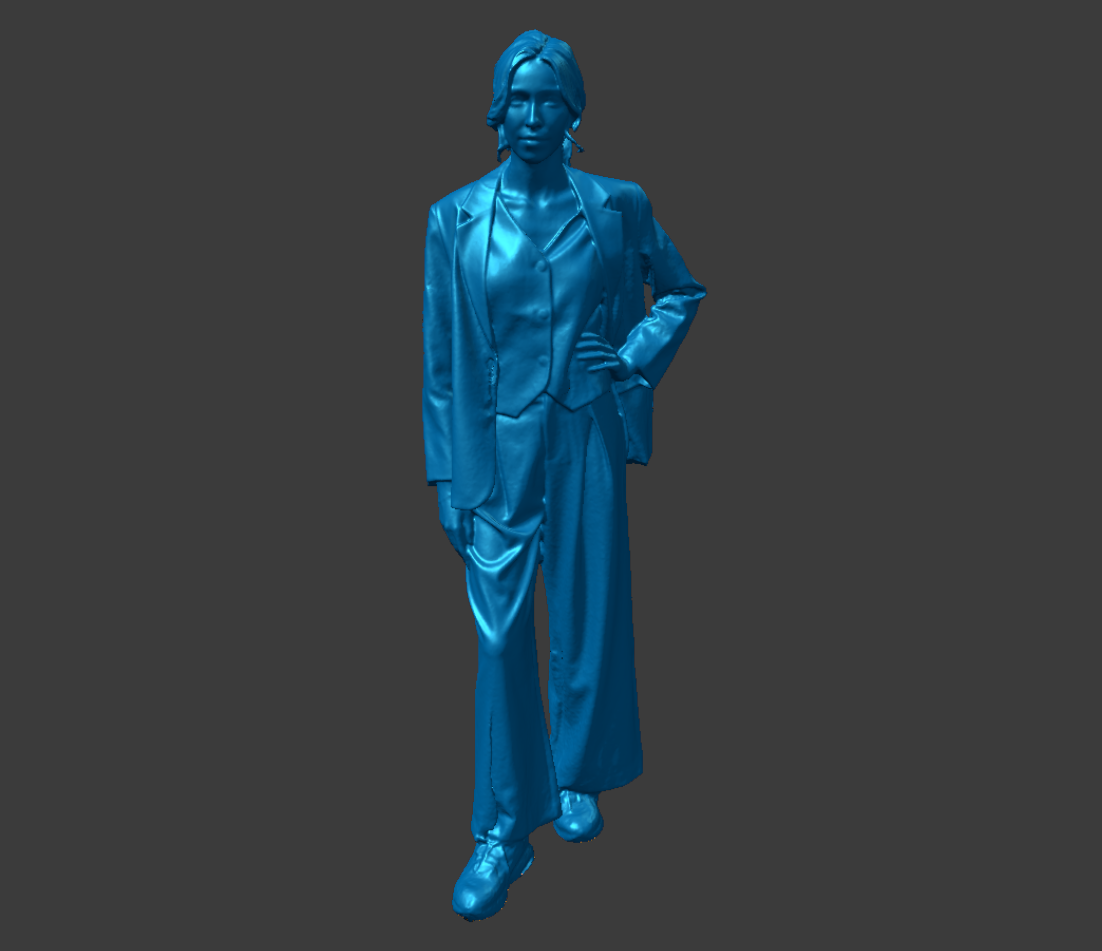

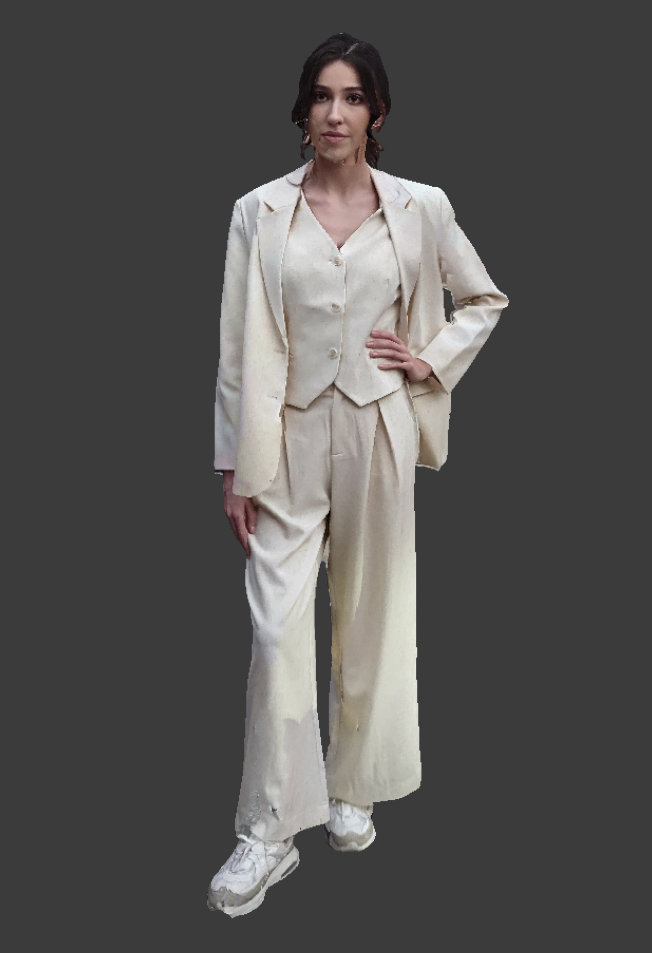

¶ Human
Parameters: Infrared Mode, Body Scan, Geometry Tracking, Fusion Resolution: 0.8 mm
.png)
.png)
¶ Cultural Relics & Artworks

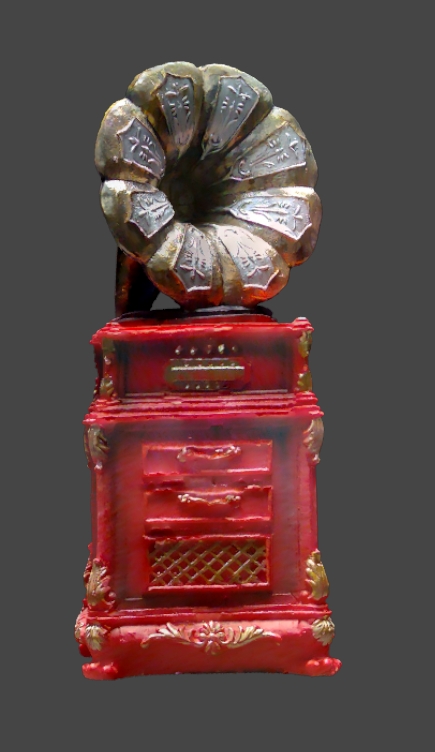

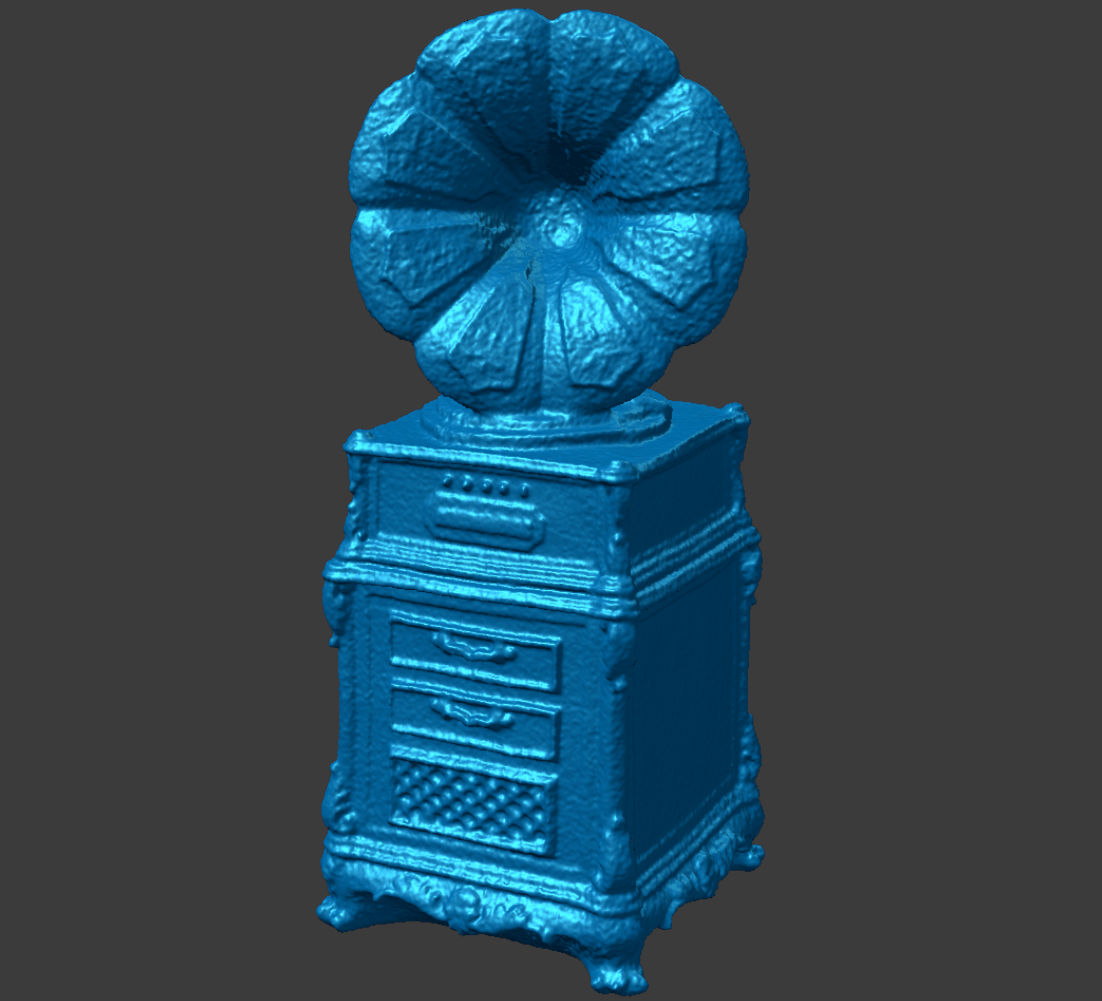

¶ Gramophone
Size: 250 × 100 × 100 (mm)
Parameters: Infrared Mode, Object Scan, Medium Size, Geometry Tracking, Fusion Resolution: 0.4 mm
.png)
.png)

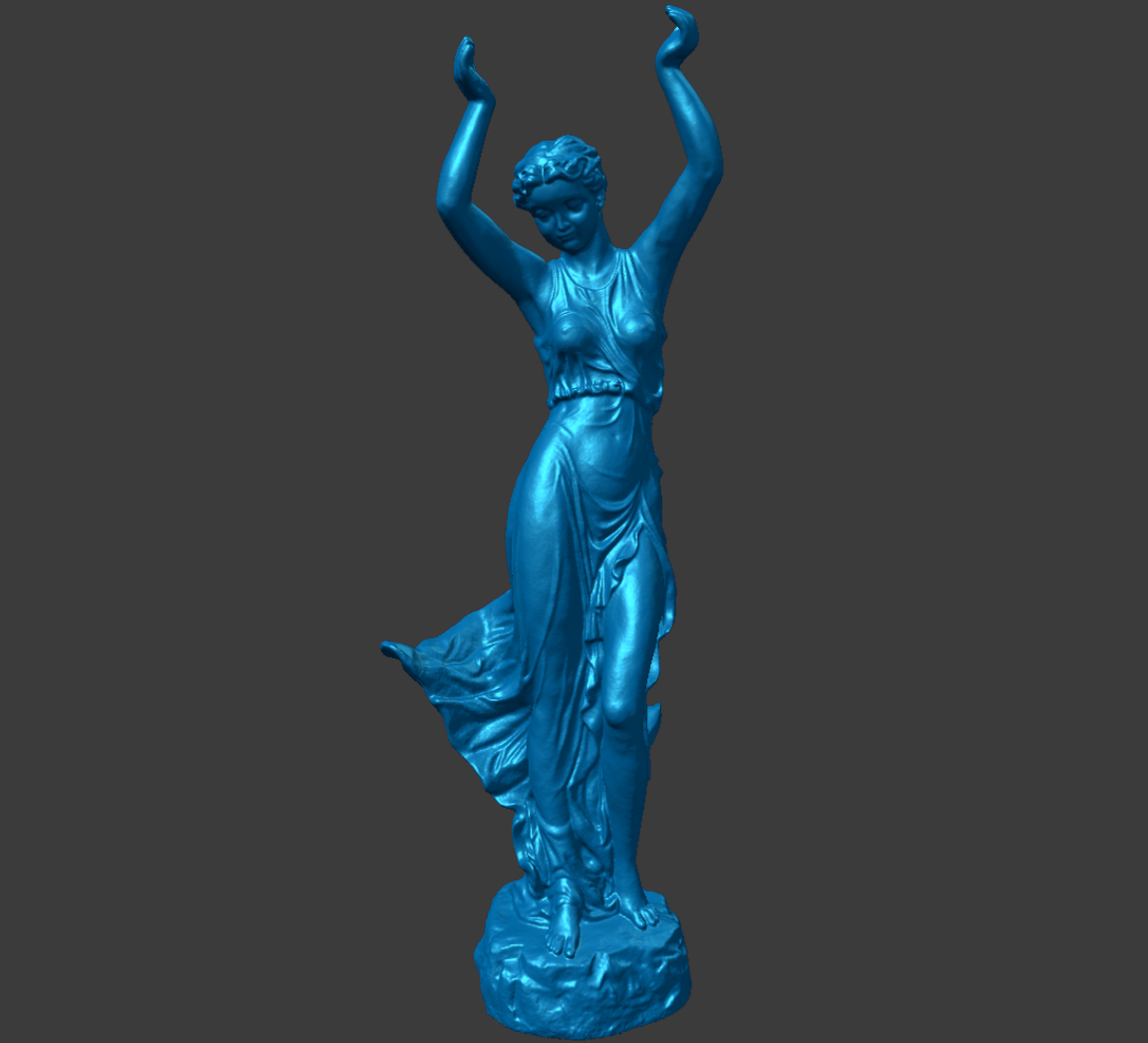

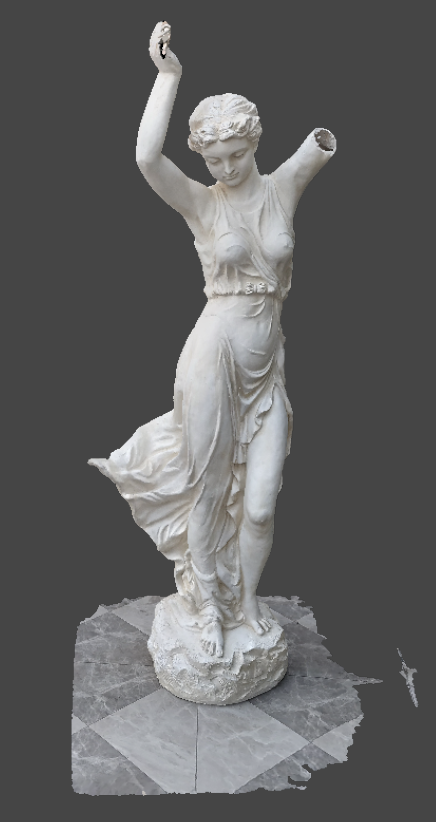

¶ Sculpture
Size: 1800 × 400 × 250 (mm)
Parameters: Infrared Mode, Body Scan, Geometry Tracking, Fusion Resolution: 0.8 mm
.png)
.png)
¶ Automotive & Large Components

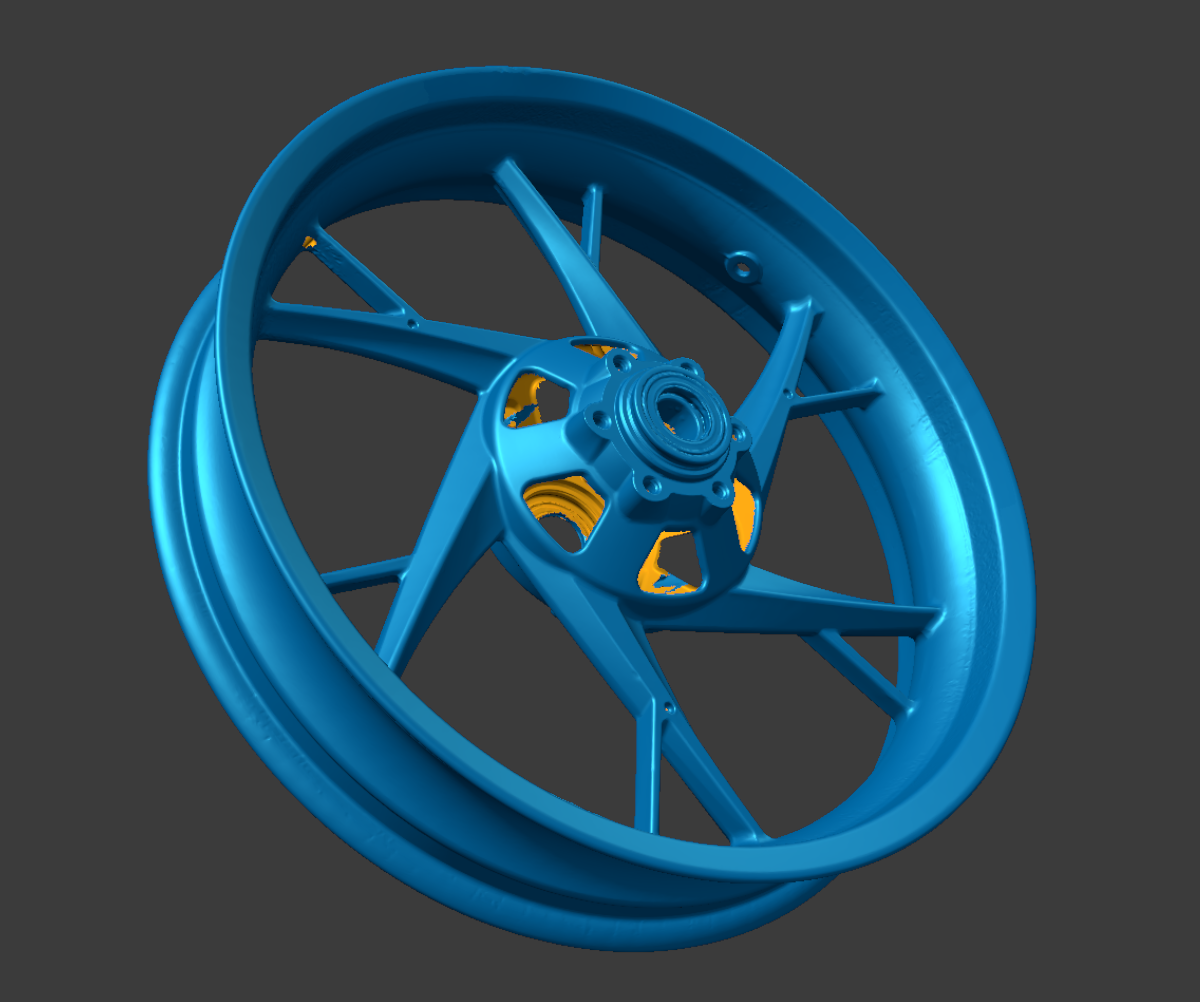

¶ Car Wheel Hub
Size: R17 inch
Parameters: Cross-line Laser Mode, Real-time Resolution: 0.35 mm
.png)

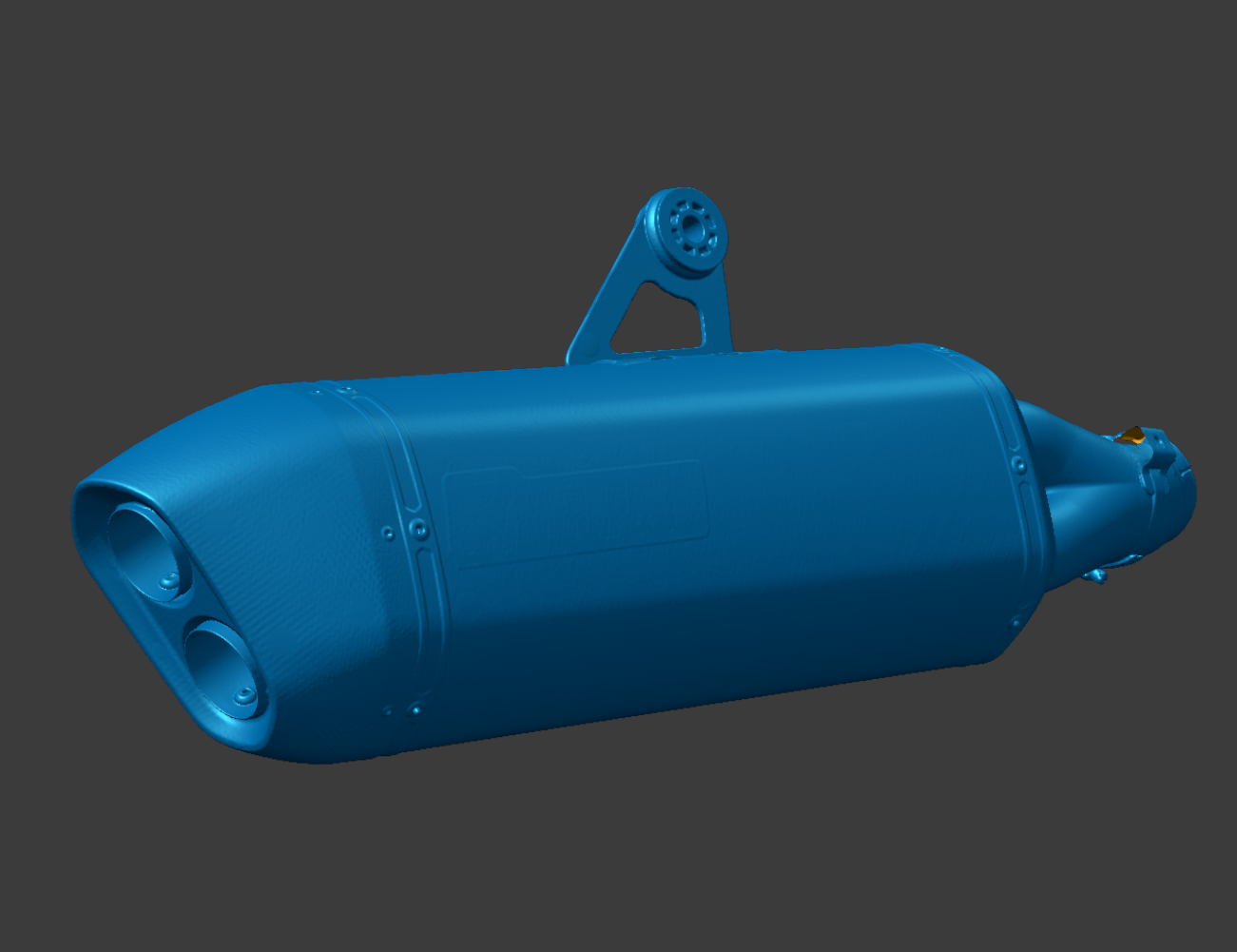

¶ Motorcycle Exhaust Pipe
Size: 500 × 150 × 130 (mm)
Parameters: Cross-line Laser Mode, Real-time Resolution: 0.35 mm
.png)

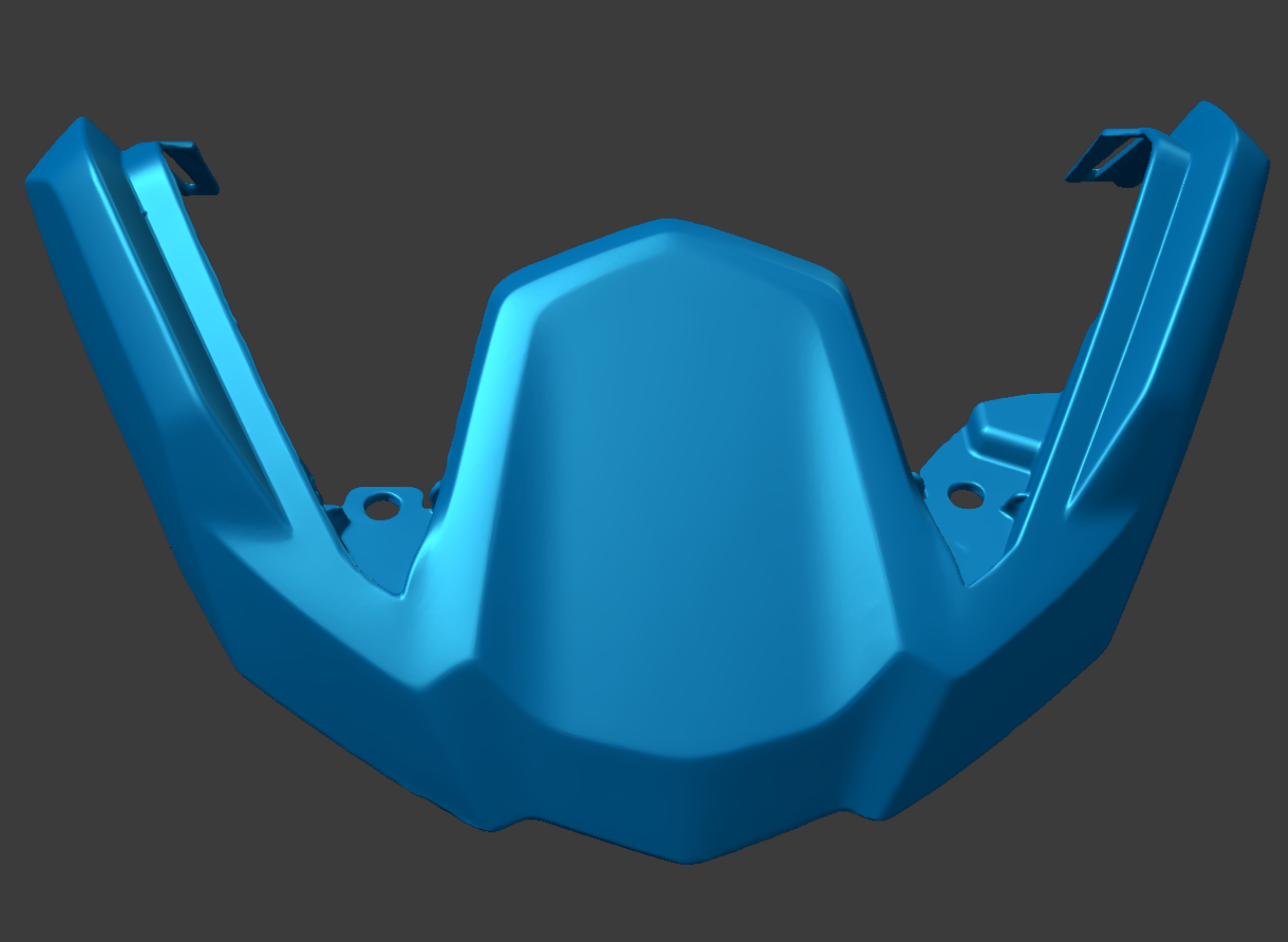

¶ Motorcycle Front Fairing
Size: 350 × 200 × 80 (mm)
Parameters: Parallel-line Laser Mode, Real-time Resolution: 0.2 mm
.png)

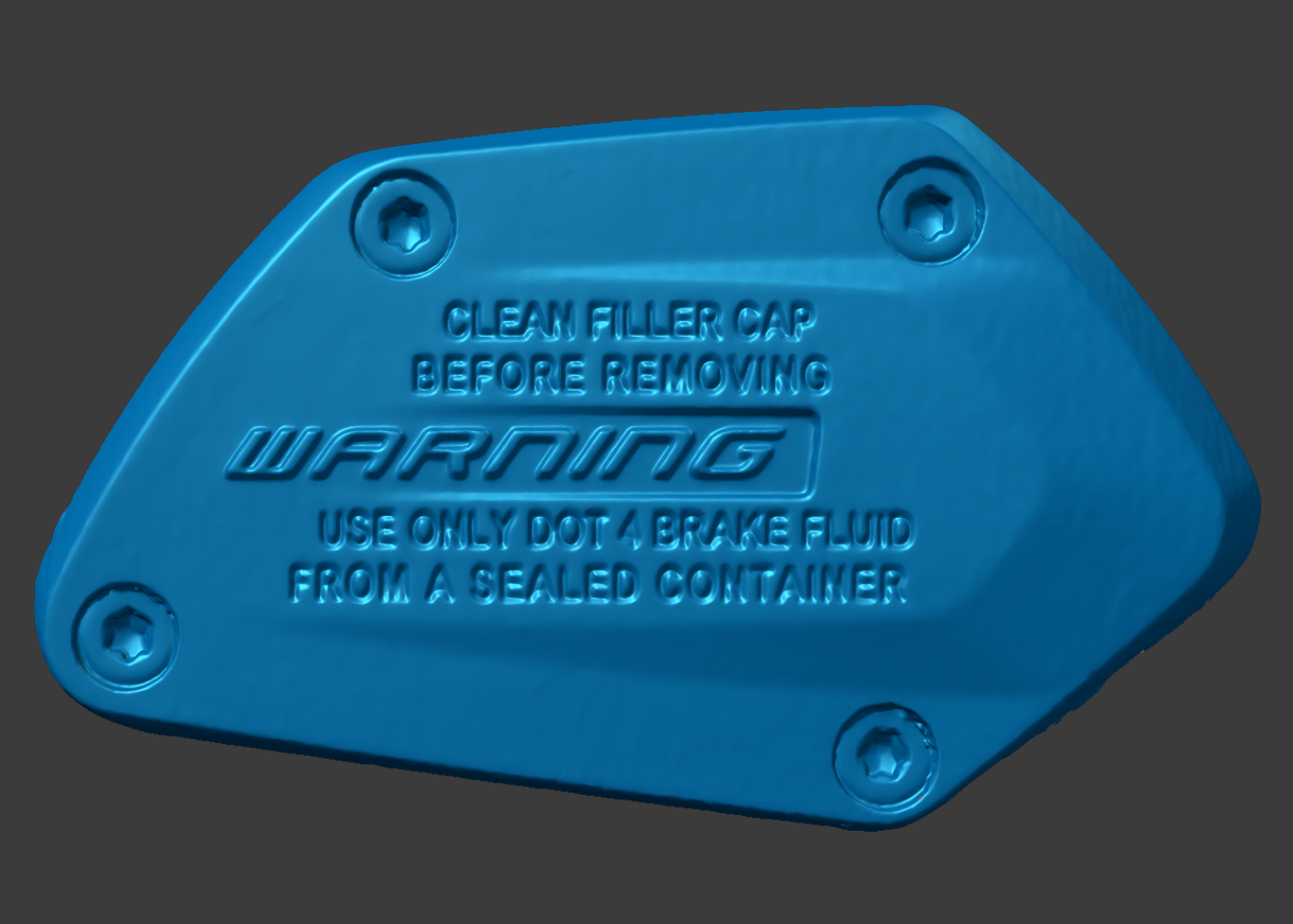

¶ Motorcycle Details
Size: 100 × 50 × 30 (mm)
Parameters: Parallel-line Laser Mode, Real-time Resolution: 0.05 mm
.png)

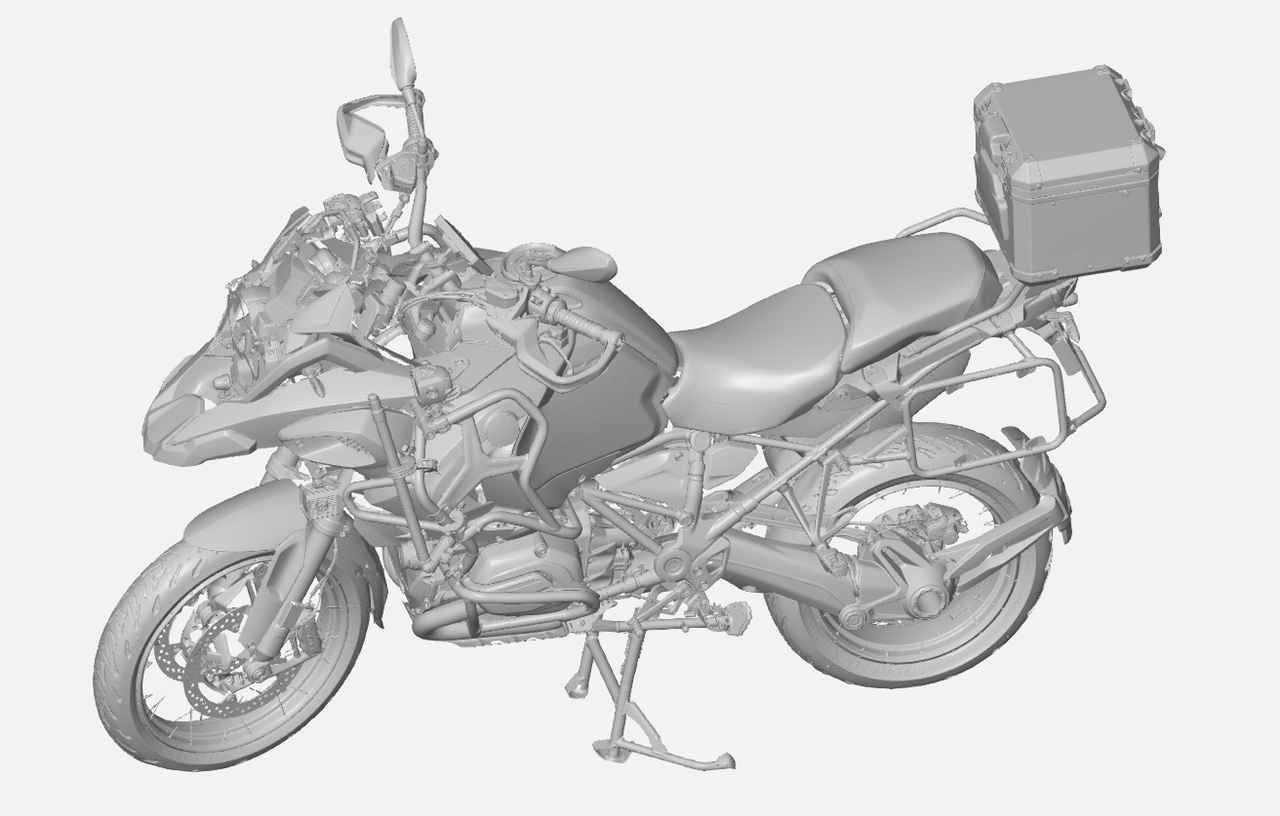

¶ Complete Motorcycle
Size: 2200 × 750 × 1400 (mm)
Parameters: Cross-line Laser Mode, Real-time Resolution: 0.7 mm
.png)

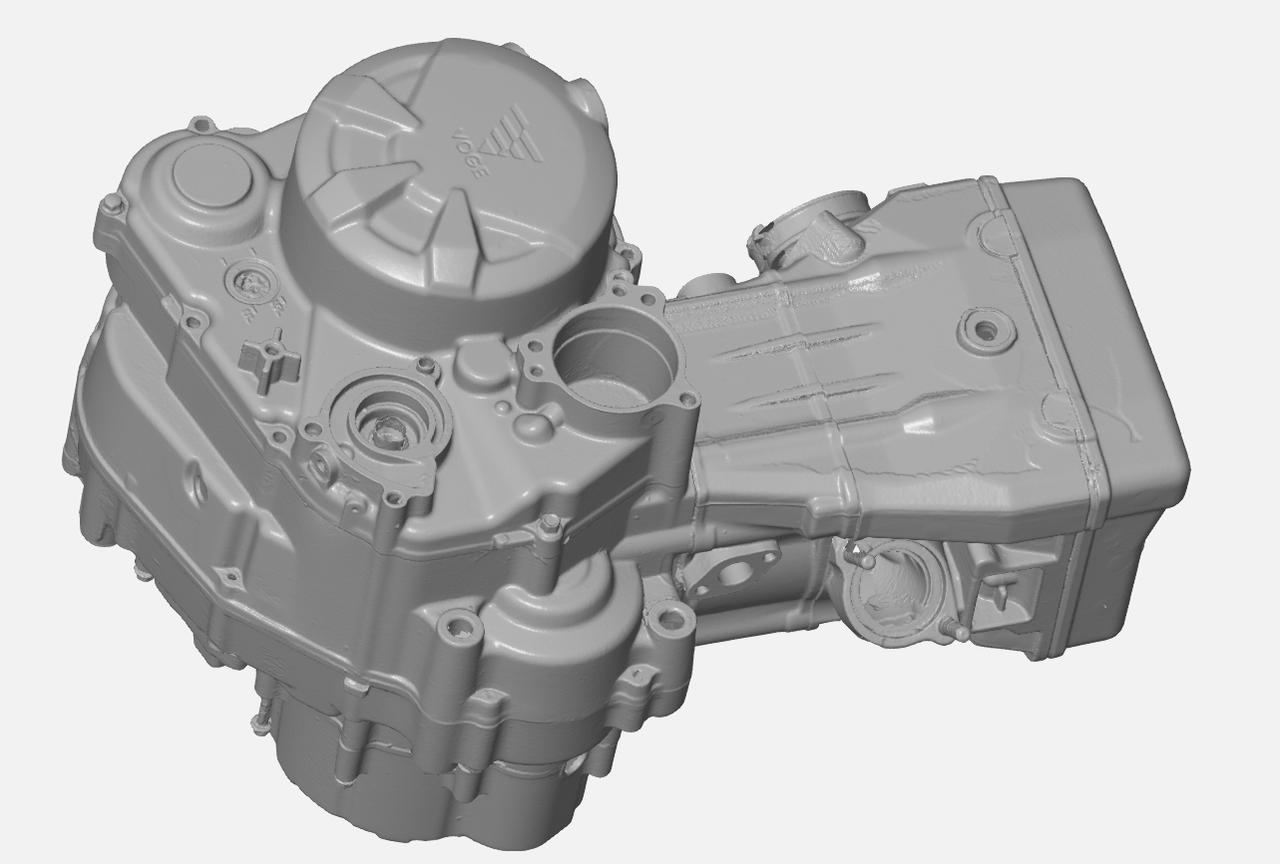

¶ Engine
Size: 470 × 300 × 320 (mm)
Parameters: Cross-line Laser + Single-line Mode, Real-time Resolution: 0.3 mm
.png)
¶ Precision Parts

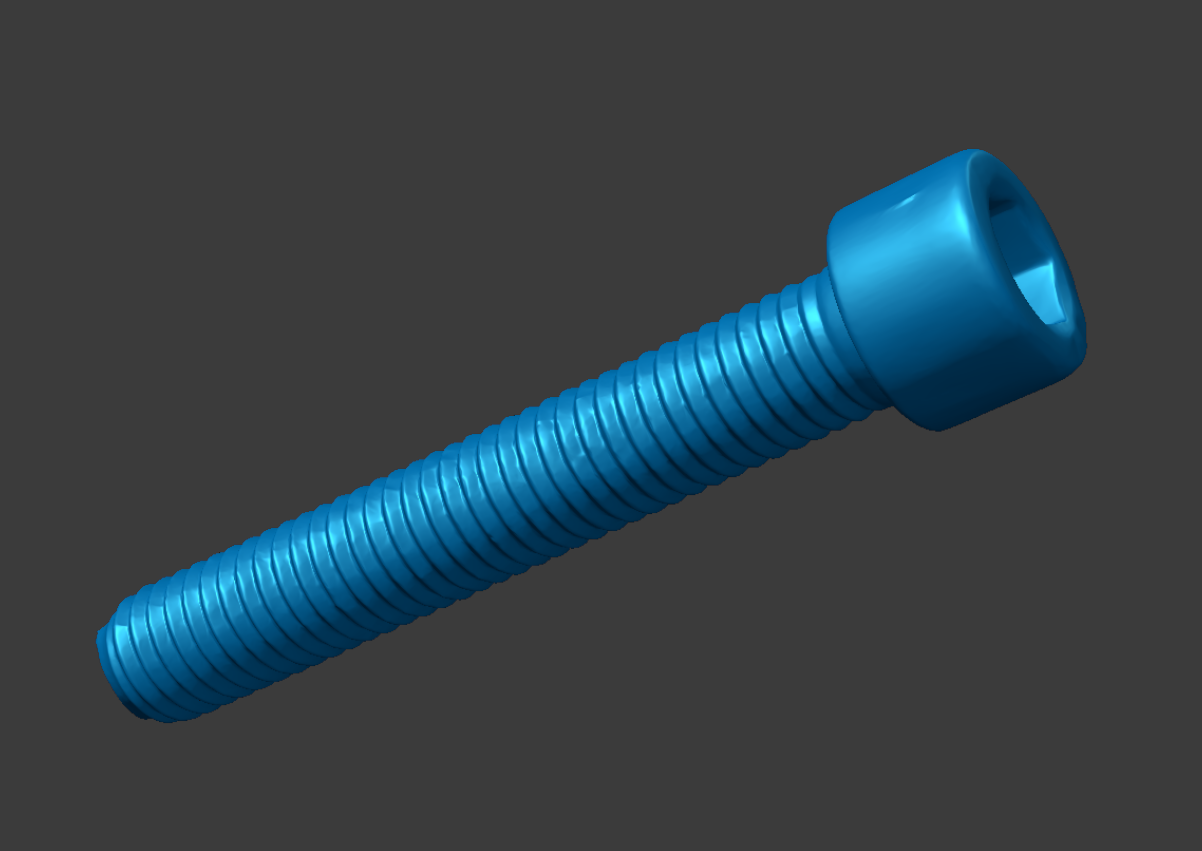

¶ Screw
Size: M10 × 50 mm
Parameters: Parallel-line Laser Mode, Real-time Resolution: 0.05 mm
.png)

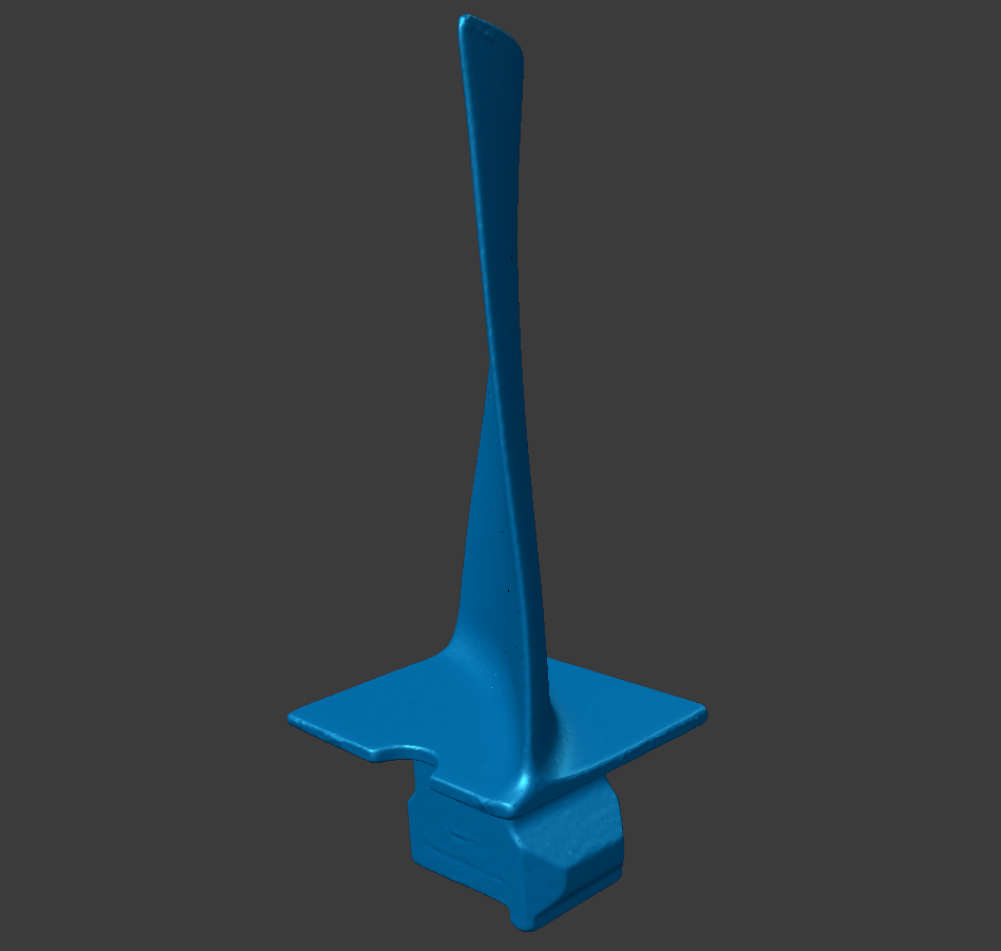

¶ Aerospace Blade
Size: 80 × 30 × 30 (mm)
Parameters: Parallel-line Laser Mode, Real-time Resolution: 0.1 mm
.png)

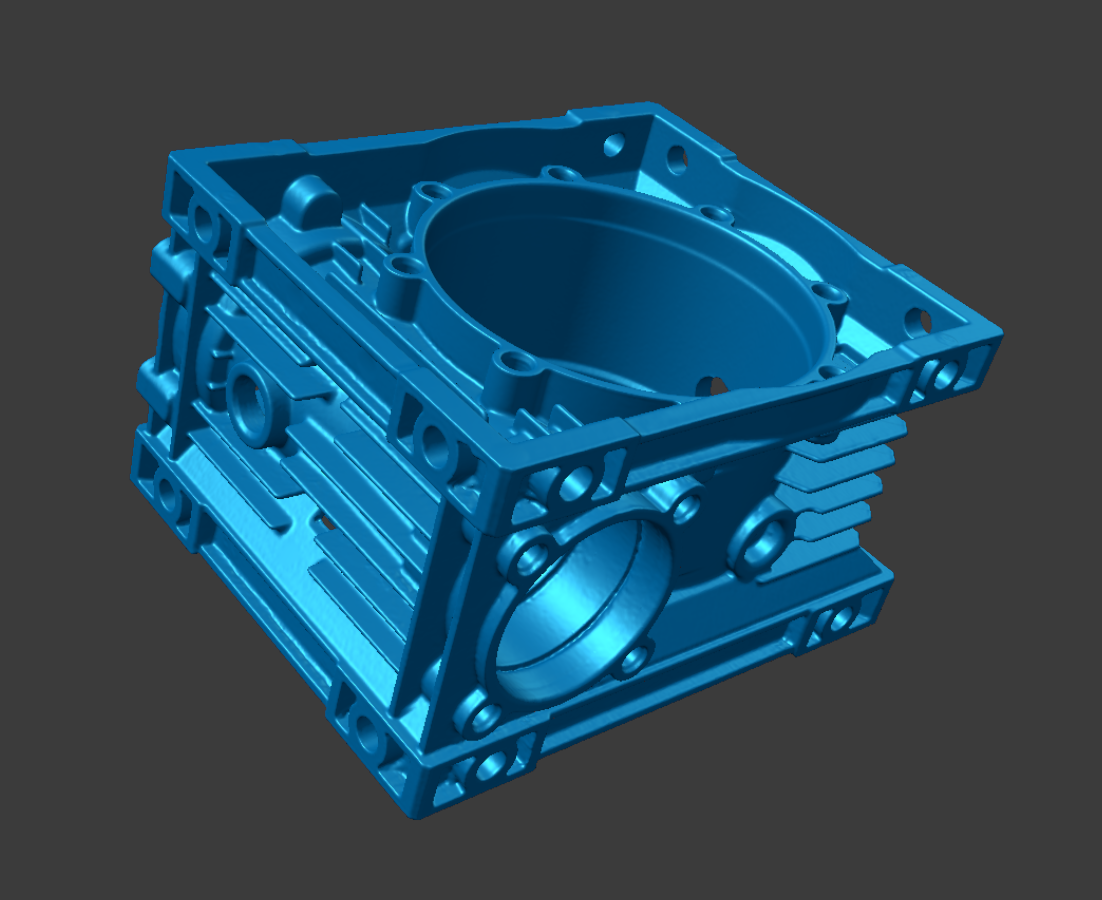

¶ Casting
Size: 160 × 130 × 100 (mm)
Parameters: Cross-line + Single-line Mode, Real-time Resolution: 0.25 mm
.png)
¶ Medical Devices

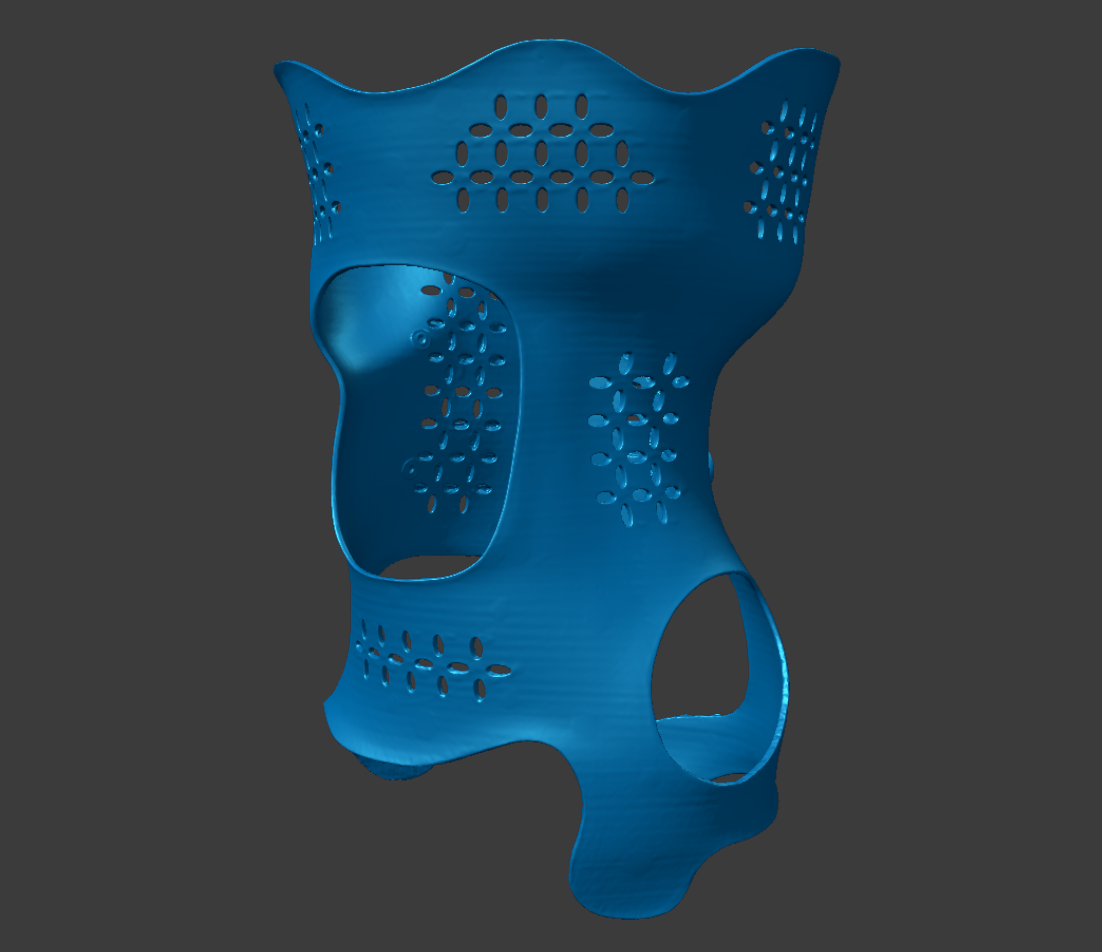

¶ Lumbar Support Brace
Size: 380 × 250 × 150 (mm)
Parameters: Cross-line Mode, Real-time Resolution: 0.25 mm
.png)
